SG Silo System

SG Silos

SG Silo System

Request a Quote

Request a Quote

Description

Capacity Table

NO	SILO CODE	DIAMETER (m)	FLOORS	VOLUME (m³)	FEED (t) (650 kg/m³)
1	SG150-1	1.5	1	1.85	1.2 ± 0,2
2	SG150-2	1.5	2	3.37	2.19 ± 0,2
3	SG210-1	2.10	1	7.33	4.76 ± 0,2
4	SG210-2	2.10	2	10.48	6.81 ± 0,2
5	SG210-3	2.10	3	13.63	8.85 ± 0,2
6	SG210-4	2.10	4	16.78	10.90 ± 0,2
7	SG210-5	2.10	5	19.93	12.95 ± 0,2
8	SG265-1	2.65	1	11.74	7,63 ± 0,2
9	SG265-2	2.65	2	16.76	10.89 ± 0,2
10	SG265-3	2.65	3	21.78	14.15 ± 0,2
11	SG265-4	2.65	4	26.80	17.42 ± 0,2
12	SG265-5	2.65	5	31.82	20.68 ± 0,2
13	SG275-1	2.75	1	12.36	08.03 ± 0,2
14	SG275-2	2.75	2	17.77	11.55 ± 0,2
15	SG275-3	2.75	3	23.17	15.07 ± 0,2
16	SG275-4	2.75	4	28.57	18.57 ± 0,2
17	SG275-5	2.75	5	33.97	22.08 ± 0,2
18	SG290-1	2.90	1	13.95	09.06 ± 0,2
19	SG290-2	2.90	2	19.98	12.98 ± 0,2
20	SG290-3	2.90	3	26.01	16.90 ± 0,2
21	SG290-4	2.90	4	32.04	20.82 ± 0,2
22	SG290-5	2.90	5	38.07	24.74 ± 0,2
23	SG360-1	3.60	1	21.26	13.81 ± 0,2
24	SG360-2	3.60	2	30.57	19.87 ± 0,2
25	SG360-3	3.60	3	39.88	25.92 ± 0,2
26	SG360-4	3.60	4	49.19	31.97 ± 0,2
27	SG360-5	3.60	5	58.50	38.02 ± 0,2
28	SG450-2	4.50	2	46.92	30.49 ± 0,2
29	SG450-3	4.50	3	61.47	49.95 ± 0,2
30	SG450-4	4.50	4	76.02	49.41 ± 0,2

Assembly Dimensions

SILO CODE	DIAMETER (m)	A (cm)	B (cm)	C (cm)	D (cm)	E (cm)	F (˚)	G (˚)	I (cm)	J (cm)	H (cm)
SG150-1	1.5	84	44	28	150	44	50	30	95	80	175±80
SG150-2	1.5	15	44	28	150	44	50	50	186	80	266±80
SG210-1	2.10	84	44	65	210	245	71.5	38	394	99	493
SG210-2	2.10	175	44	65	210	245	71.5	38	485	99	584
SG210-3	2.10	266	44	65	210	245	71.5	38	576	99	675
SG210-4	2.10	357	44	65	210	245	71.5	38	667	99	766
SG210-5	2.10	448	44	65	210	245	71.5	38	758	99	857
SG265-1	2.65	84	44	64	265	260	67	30	408	85	493
SG265-2	2.65	175	44	64	265	260	67	30	499	85	584
SG265-3	2.65	266	44	64	265	260	67	30	590	85	675
SG265-4	2.65	357	44	64	265	260	67	30	681	85	766
SG265-5	2.65	448	44	64	265	260	67	30	772	85	857
SG275-1	2.75	84	44	67	275	248	65	30	399	87	486
SG275-2	2.75	175	44	67	275	248	65	30	490	87	577
SG275-3	2.75	266	44	67	275	248	65	30	581	87	668
SG275-4	2.75	357	44	67	275	248	65	30	672	87	759
SG275-5	2.75	448	44	67	275	248	65	30	763	87	850
SG290-1	2.90	84	44	71	290	253	64	30	408	90	498
SG290-2	2.90	175	44	71	290	253	64	30	499	90	589
SG290-3	2.90	266	44	71	290	253	64	30	590	90	680
SG290-4	2.90	357	44	71	290	253	64	30	681	90	771
SG290-5	2.90	448	44	71	290	253	64	30	772	90	862
SG360-1	3.60	84	44	92	360	235	56	30	411	100	511
SG360-2	3.60	175	44	92	360	235	56	30	502	100	602
SG360-3	3.60	266	44	92	360	235	56	30	593	100	693
SG360-4	3.60	357	44	92	360	235	56	30	684	100	784
SG360-5	3.60	448	44	92	360	235	56	30	775	100	875
SG450-2	4.50	175	44	117	451	204	45	30	496	100	596
SG450-3	4.50	266	44	117	451	204	45	30	587	100	687
SG450-4	4.50	357	44	117	451	204	45	30	678	100	778

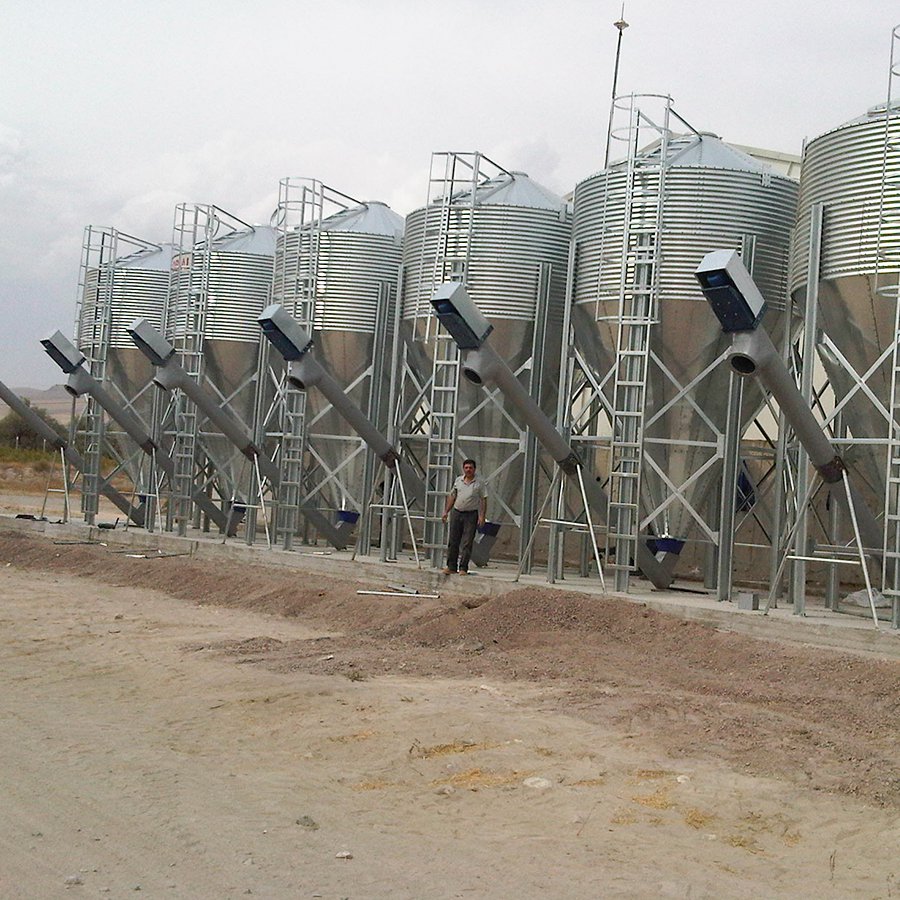

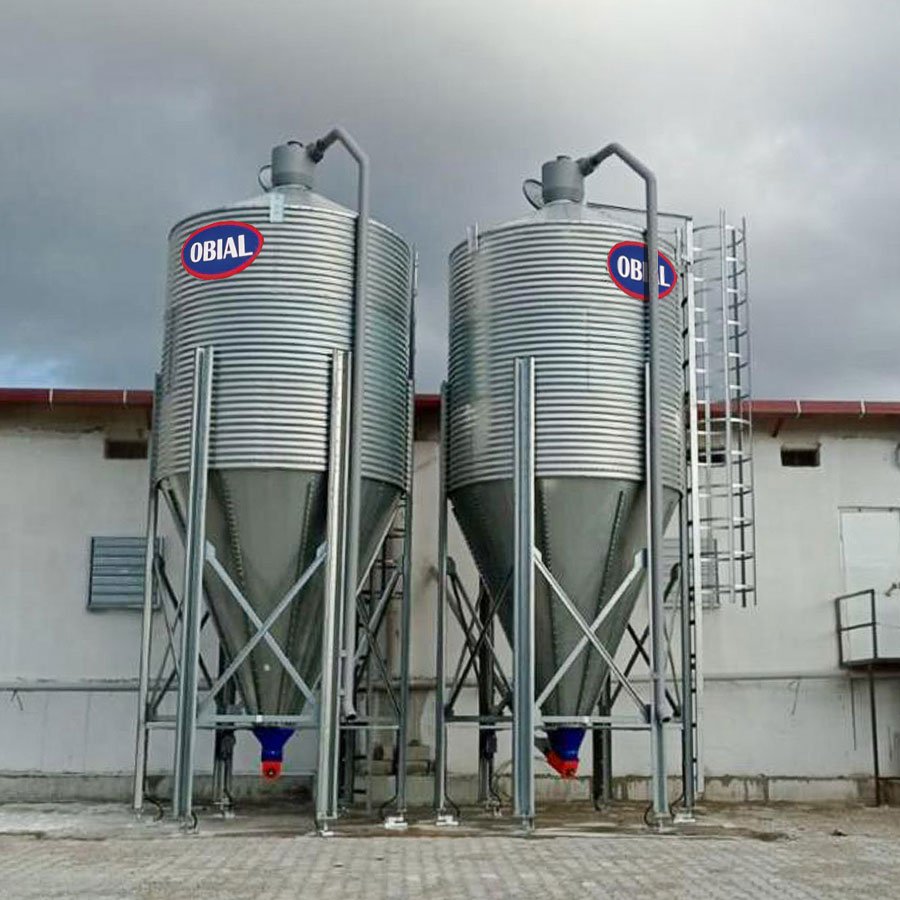

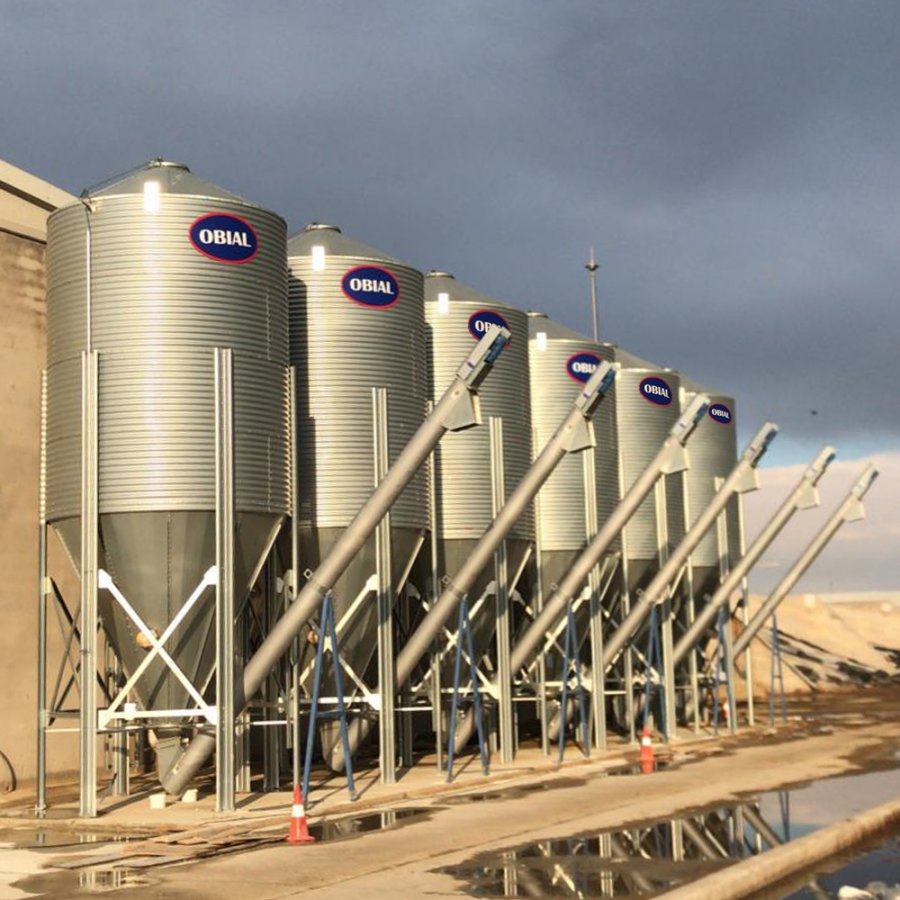

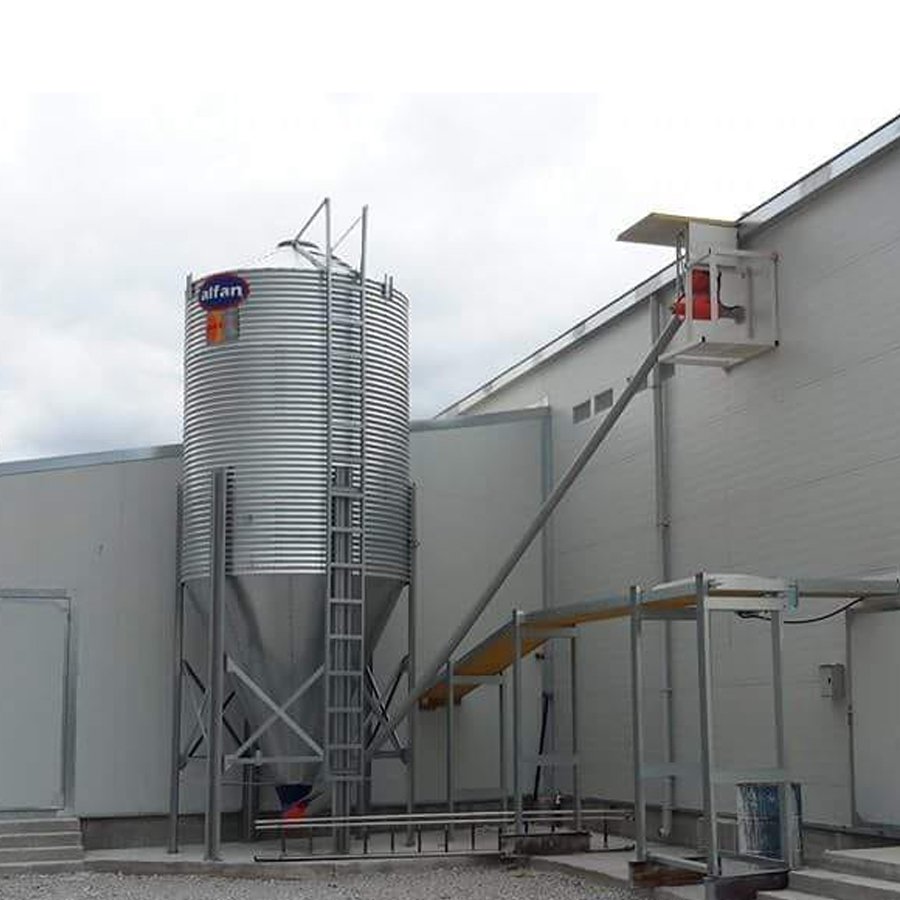

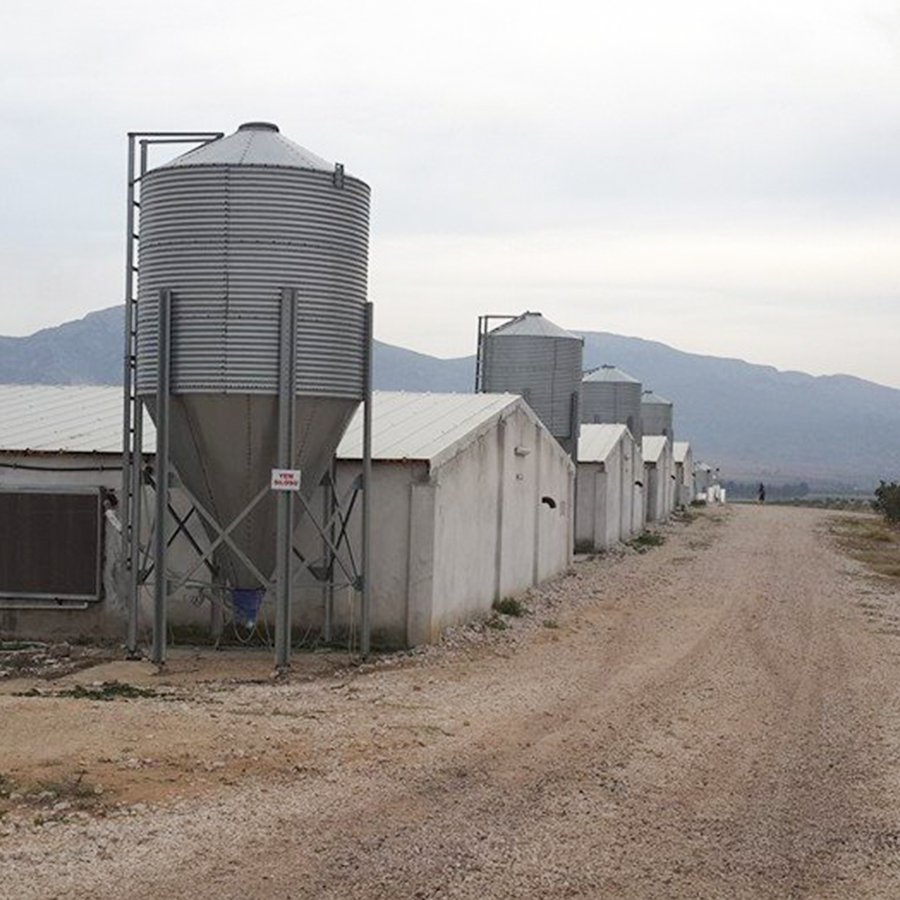

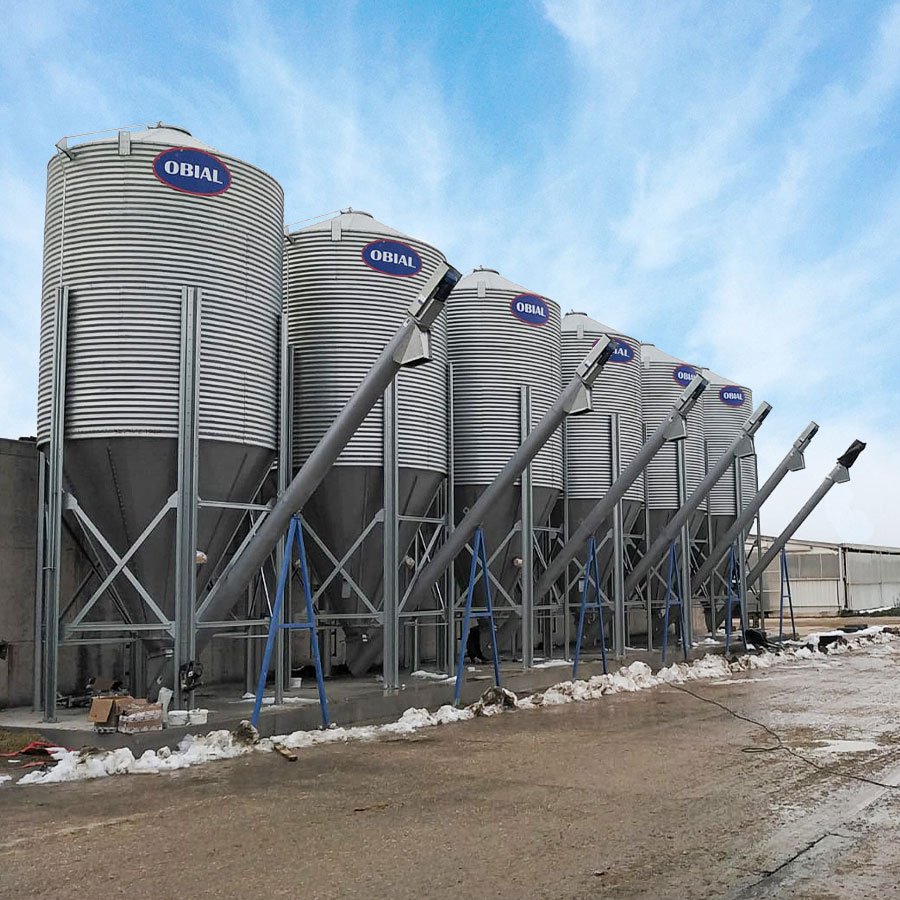

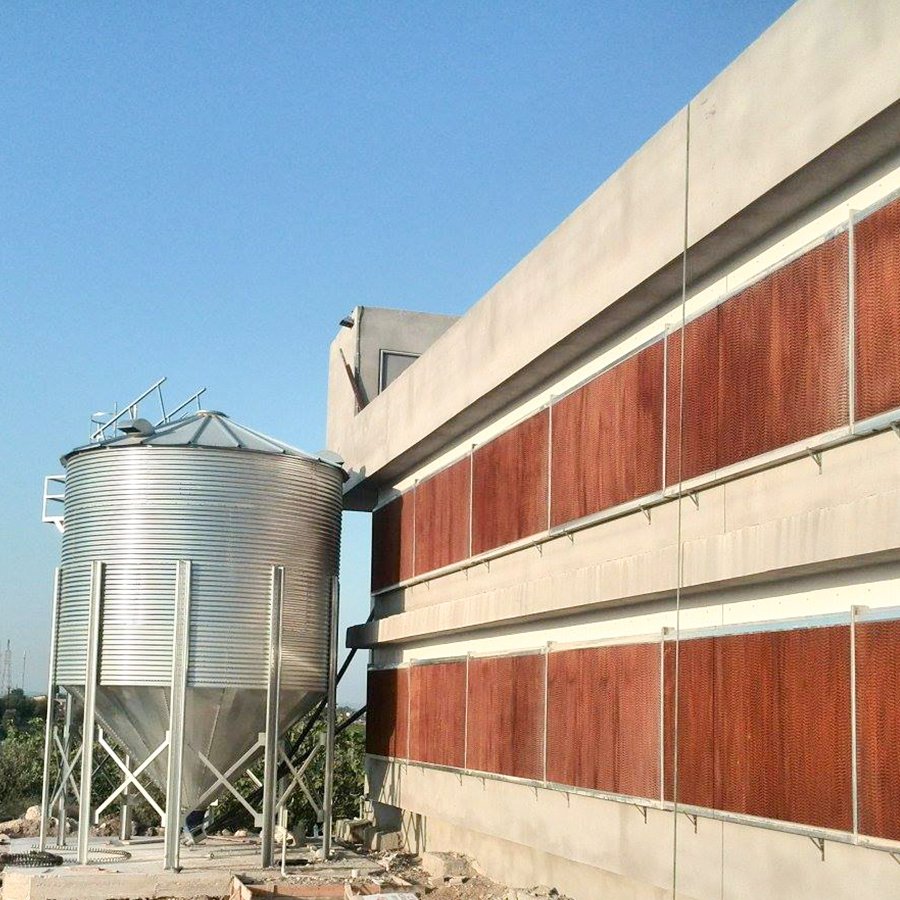

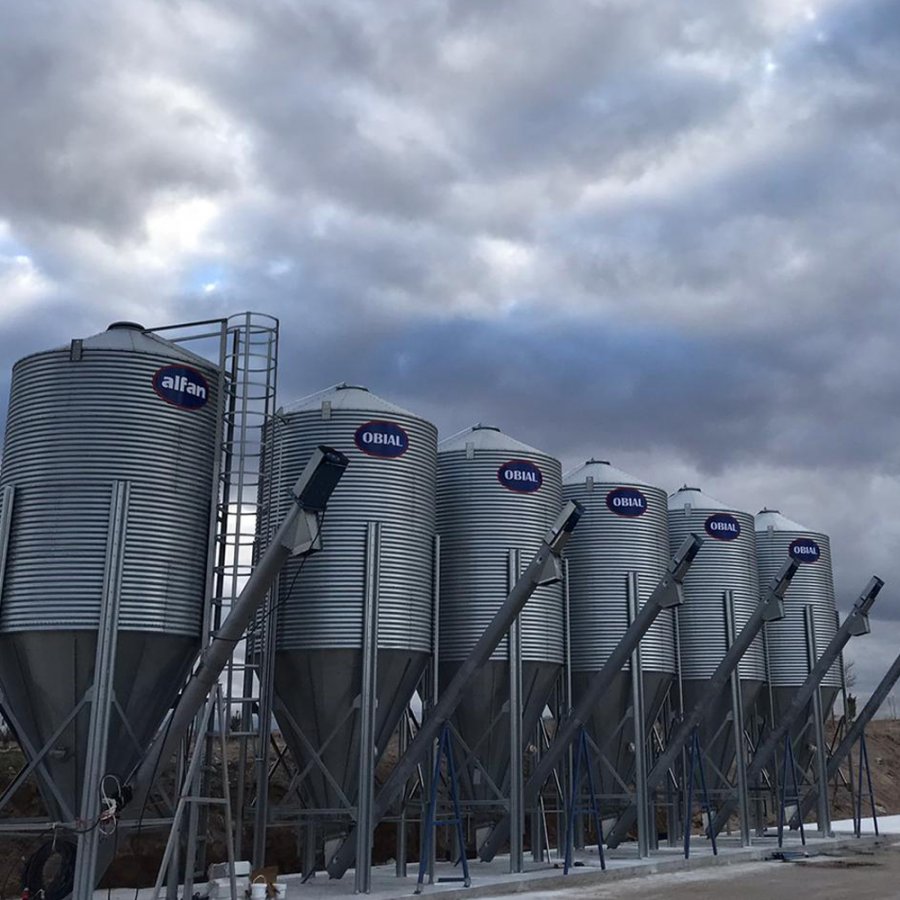

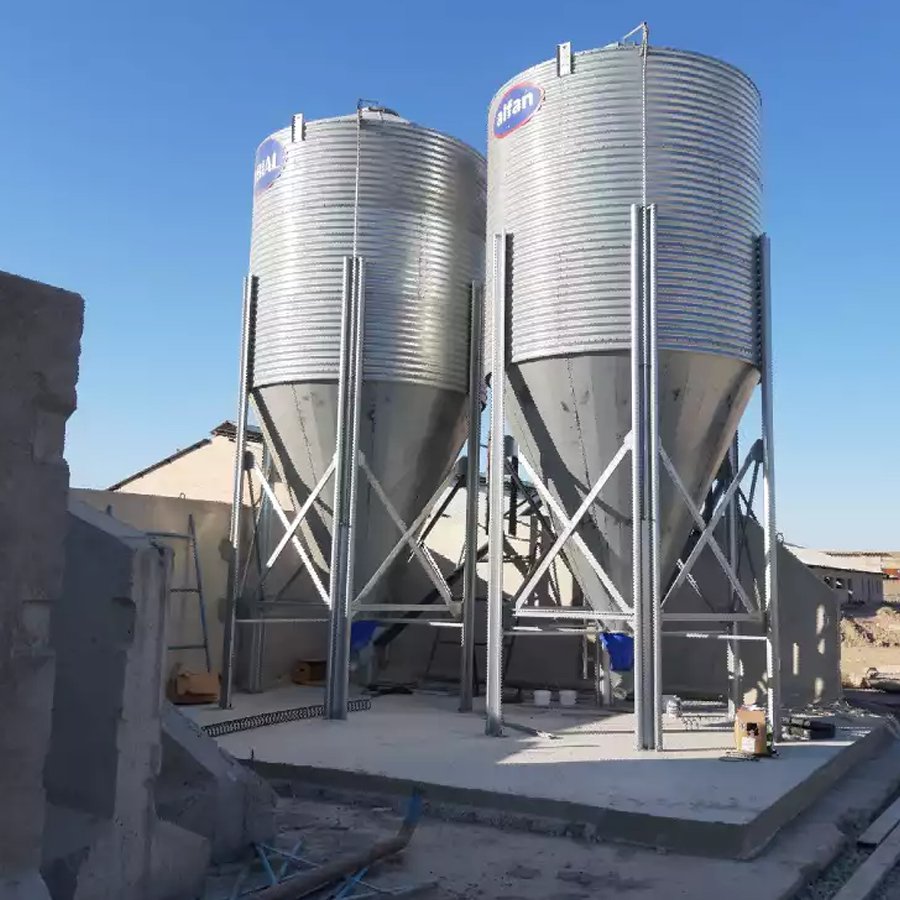

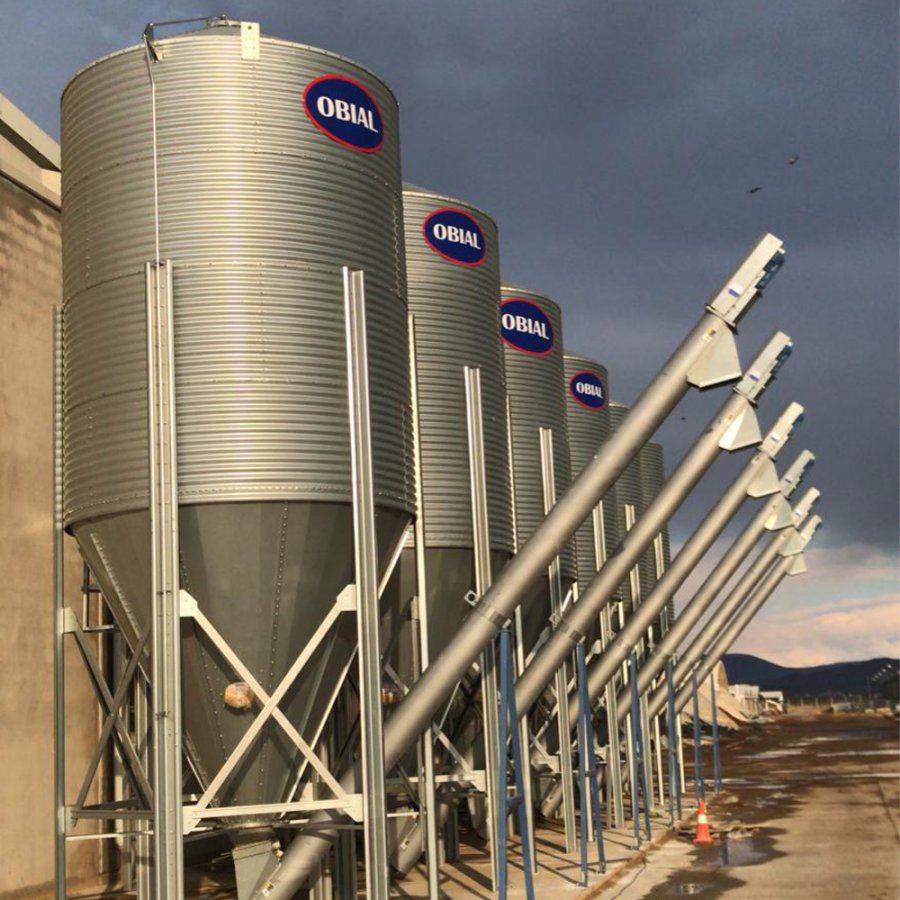

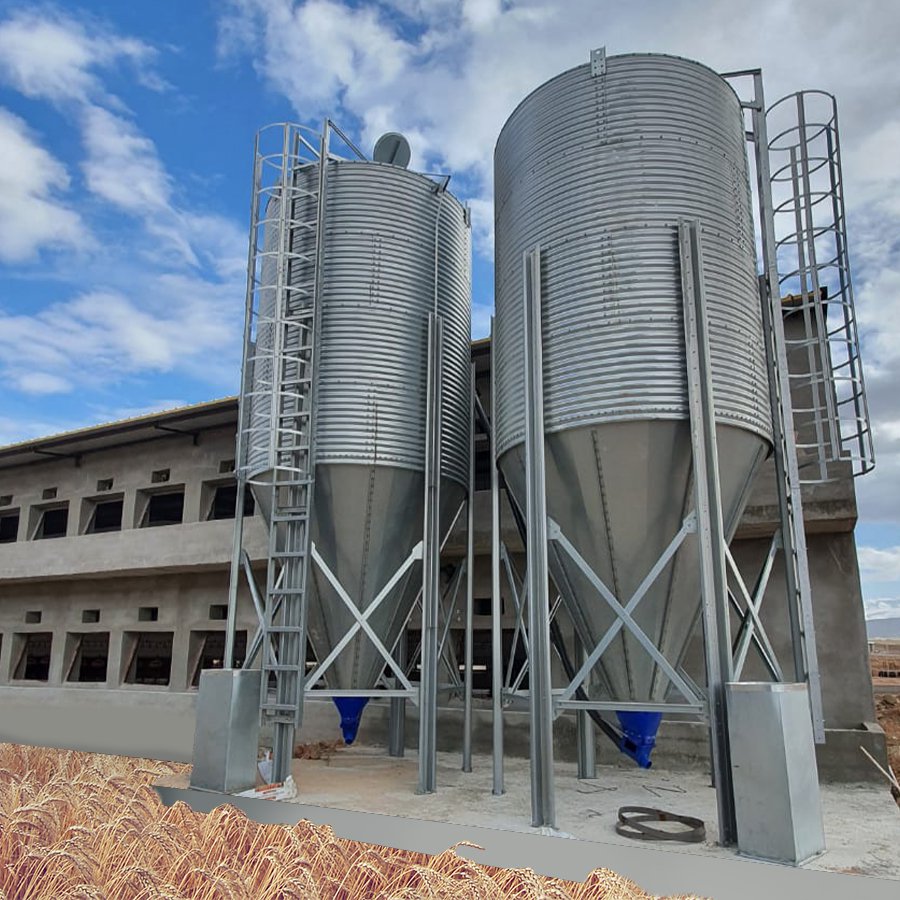

Application Examples

General Information

Our feed stock silos are completely made from dip – hotgalvanised steel, 8,8 quality fasteners and special waterprofff sealing areused in all silo connections points.

Transportation, installation and maintenance of the silos isvery easy and convenient. We offer you silos with diameter starting from 2,10m. Upto 4,51 m. Manufactured from stron and long life material and designed tomeet all needs and demands of the clients.

Silo bottom hoppers angles can be different according to thematerial stored, it allows to increase the flowability of the material andmakes silo disharge process very easy and quick

It is possible to make more than one connection to the silohopper exit an it allows you to handle stored material in a different ways.
