GENERAL INFORMATION

Feeding Trough Channel

Designed with a user-friendly and wide-mouth structure, this highly practical feeding trough channel is manufactured from 1 mm thick galvanized sheet steel. (Channel lengths are 3 meters.)

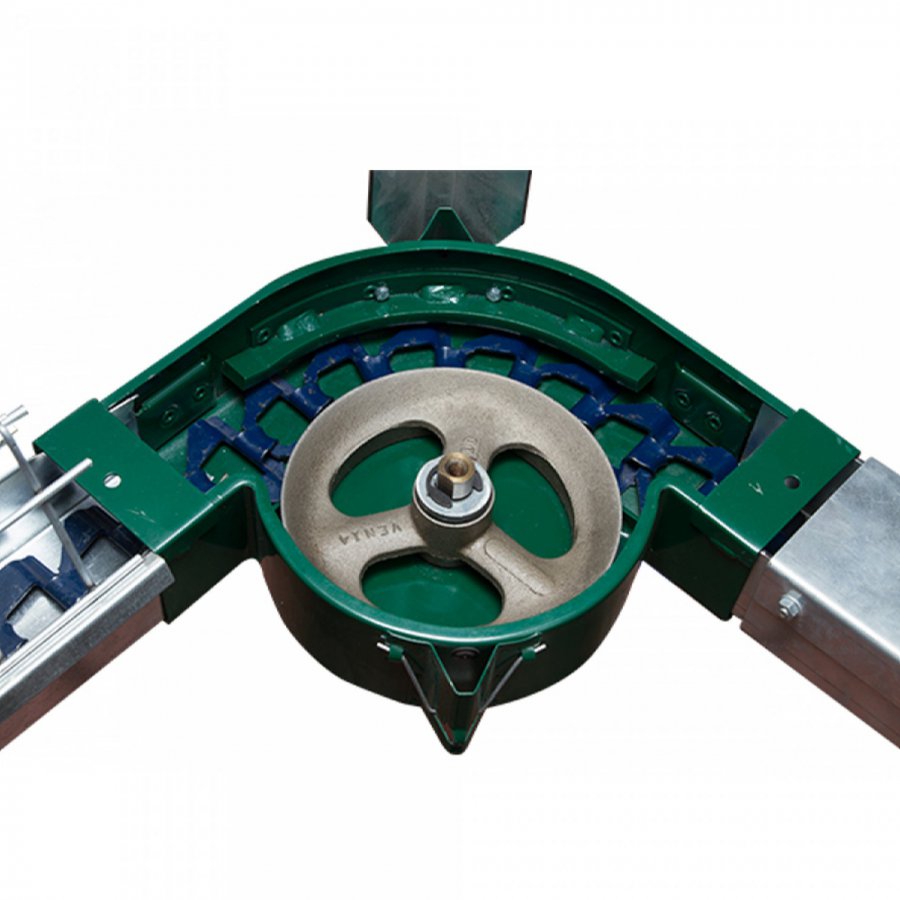

Feeding Trough Corner

Requiring no lubrication or maintenance, the ductile iron channel feeding trough and corner assembly is one of the most critical components of the line. The 90-degree corner operates seamlessly even at high speeds, thanks to its heat-treated guide rail and self-lubricating shaft bearing. It is fully compatible with both floor-mounted (footed) and winchable (suspended) automatic chain feeding systems. It features both height-adjustable foot connection points and suspension handles for suspended installation.

Feeding Chain

Crafted from a specialized alloy material, our chain completely eliminates twisting, stretching, and slack. It features a tensile strength of up to 12 kN and is offered in two variations based on customer preference. Operating in total harmony with corner and drive sprocket assemblies, it is highly resistant to high-speed operations.

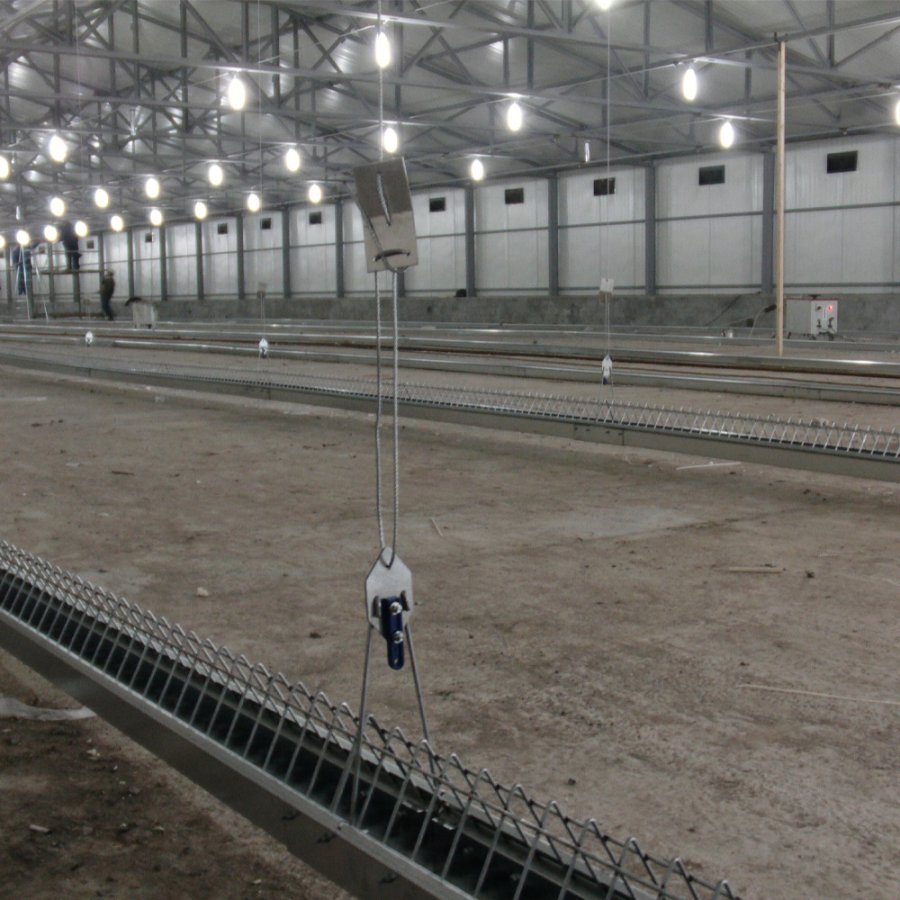

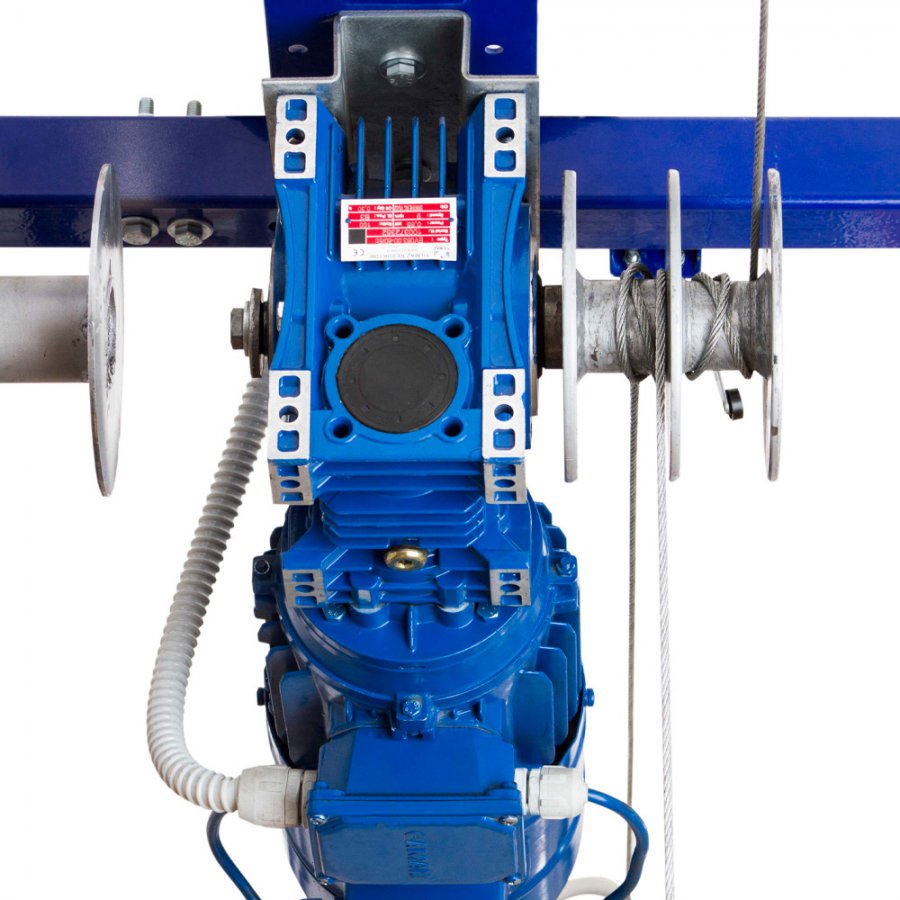

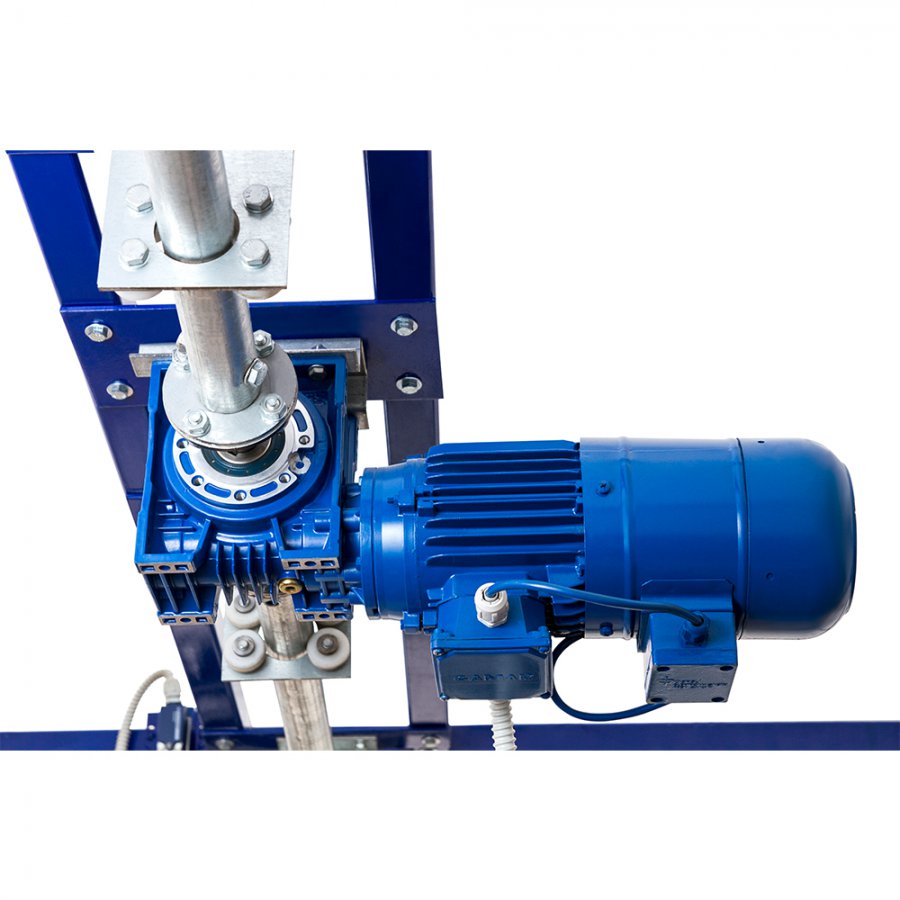

Channel Feeding Winch System

In the winchable feeding system, the motor operates beneath the roof truss, connected via pulleys and steel cables to the channel suspension bridges, corners, and hopper. The motor is equipped with a brake and dual gear reducers, reducing the speed to 5 RPM to transmit smooth, controlled movement to the cable winding drums via a 50 mm pipe. To keep the pulley pipe balanced and eliminate deflection, it is secured between 4 bearing wheels made of custom Castamid material. Upward and downward movement is controlled via the main control panel.

Grill

The channel grill is engineered to ensure birds feed uniformly and in equal portions. The design remains identical across both floor-mounted and winchable systems. It features an integrated shock wire system, is impact-resistant, and will not flex. Grill spacing can be customized to suit specific poultry species.

Drive Unit (Motor Assembly)

The drive unit supplies power to the chain feeding system. Connected via a sprocket assembly, the gear mounted to the motor shaft drives the chain. Drive units are manufactured to fit both winchable and floor-mounted systems identically. This design approach ensures seamless transitions if a facility decides to convert from a floor-mounted system to a winchable system or vice versa.

Drive Unit and Gear System

Winchable Automatic Chain Feeding Systems: Equipped with Single-Speed motors.

Floor-Mounted Automatic Chain Feeding Systems: Equipped with Dual-Speed motors.

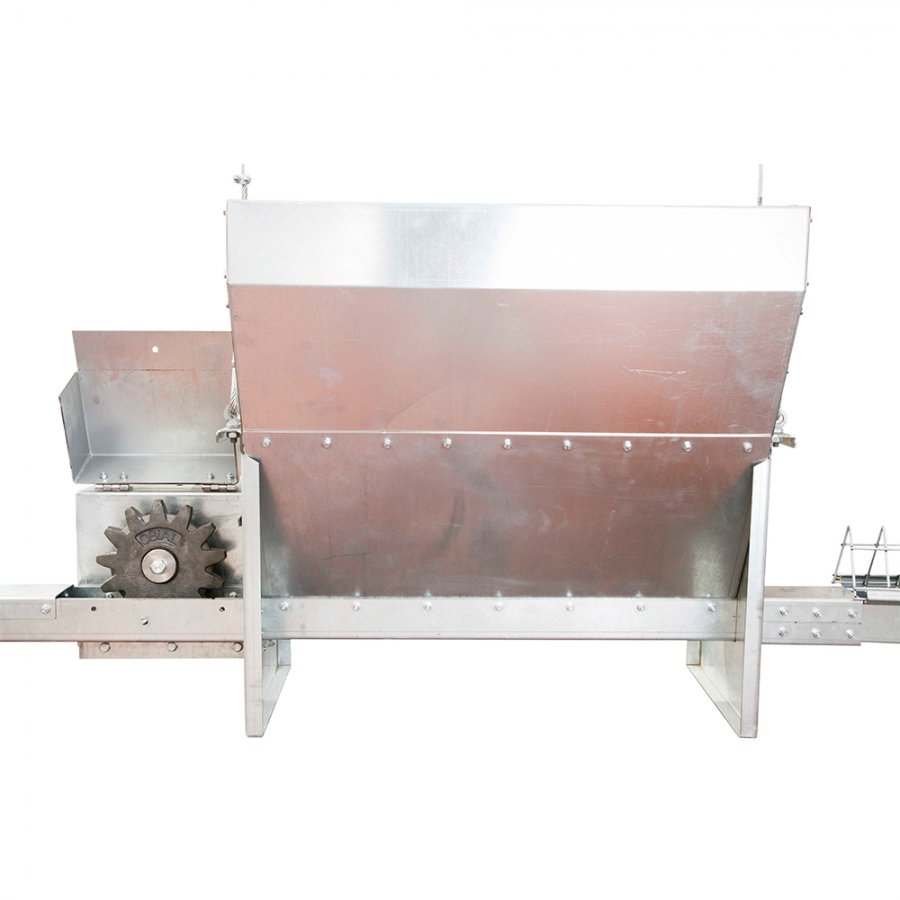

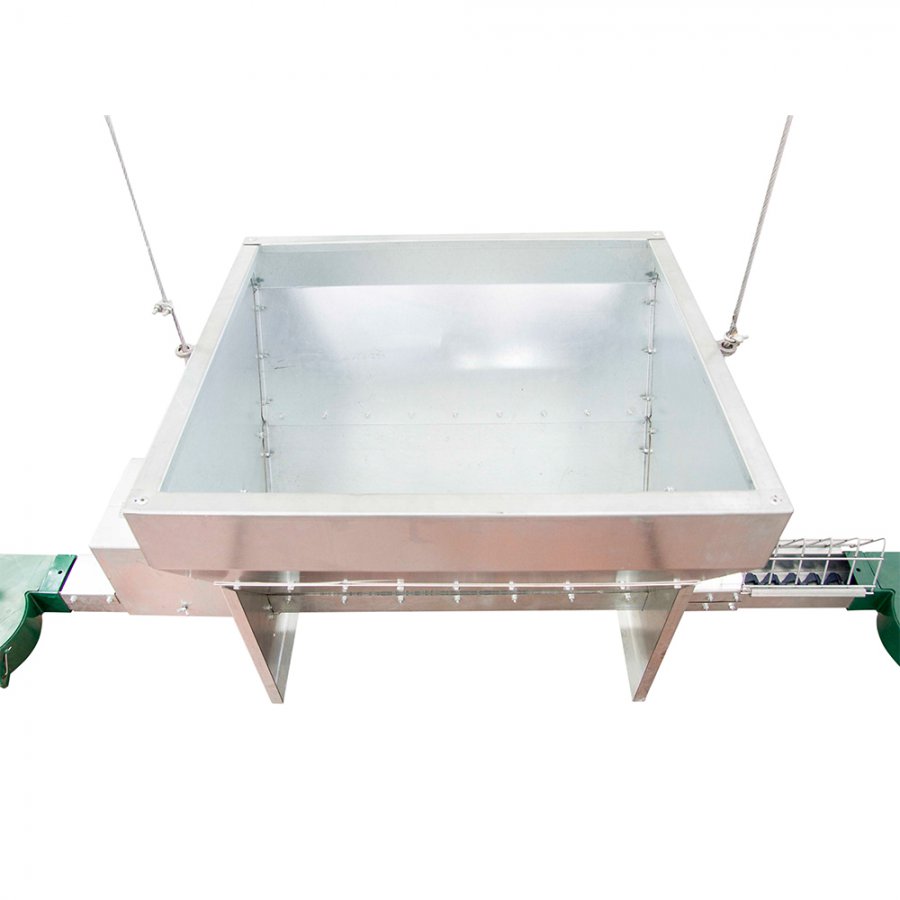

Feed Hopper

The hopper serves as the initial entry point for feed coming from the silo into the feeding line. From this point, feed is distributed throughout the line using specialized chains. Hopper sizes vary depending on farm capacity, with options for multiple outlet configurations available upon request. Additionally, hoppers are constructed with floor supports for floor-mounted systems and with dual suspension/foot mountings for winchable systems, allowing the same hopper unit to be utilized across both configurations. Capacity: 240–600 kg.

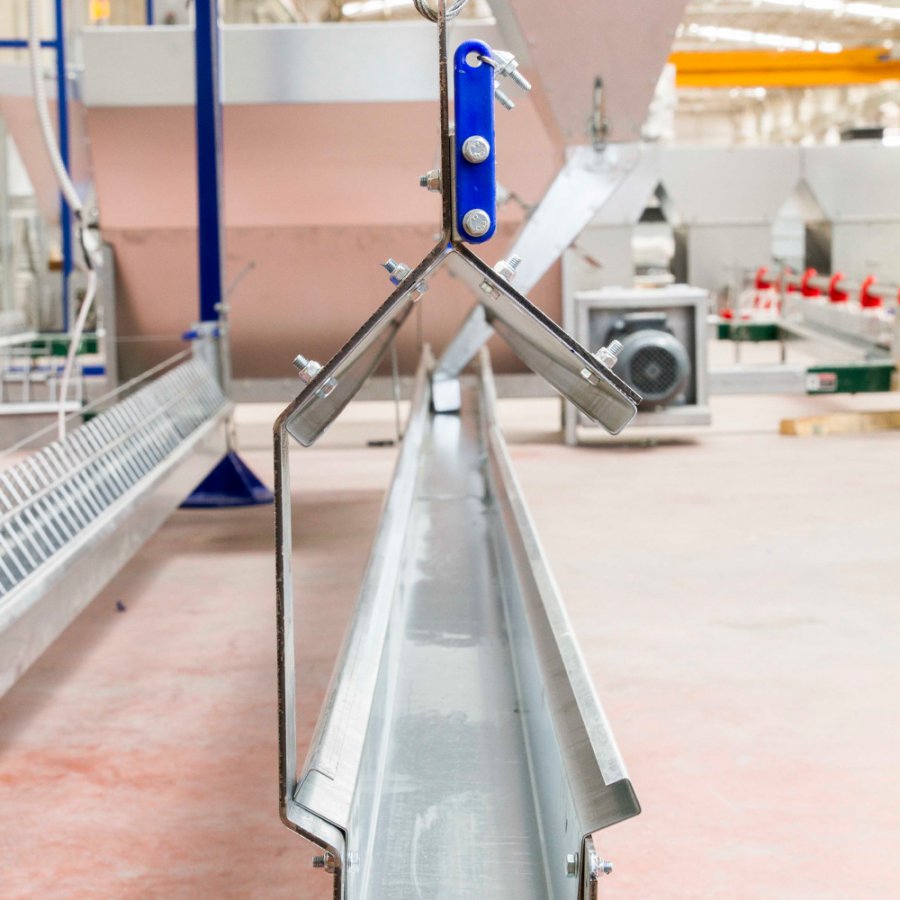

Trough Legs and Bridge Brackets

Manufactured from 2 mm thick galvanized sheet steel, these height-adjustable channel bridges are used in automatic floor-mounted feeding systems. They align perfectly with the leg assembly and can also be fitted with suspension brackets for use in winchable feeding systems.

Nest Boxes

Featuring a galvanized steel body, our nest boxes are built with wooden perches where birds step. The perch board folds upward at night to prevent birds from entering and roosting inside during off-hours. The sloped roof design prevents birds from perching on top. Each nest compartment accommodates 3 to 4 birds. Filling the nest boxes with bedding material (such as wood shavings) helps prevent heat loss. Nest boxes should be positioned in secluded, dimmed areas of the poultry house.

Control Panel

ALFAN electrical control panels utilize premium Siemens switchgear components. The panel enclosure is finished with electrostatic powder coating and features a modular design for easy disassembly and reassembly. Because the motor driving the chain in winchable systems is single-speed, the chain feed cycle is initiated via a simple start-stop button. For the winching line, dedicated control buttons manage the upward and downward movement of the entire line, while integrated safety limit switches automatically regulate maximum high and low travel limits.

The special design and is extremely handy with a wide mouth feed channel is made in galvanized steel is made from 1mm thick. (Channel length of 3 mt.)

it does not require any oil and maintenance, ductile iron castings and corner feed channel is one of the most important parts of the line. Even in 90 degree corner at high speed, manual work seamlessly with heat treated rails and self-lubricating bearings. it is still appropriate to the leg and lift-automatic feeder canal system. Height-adjustable feet and lifting lugs for connection system is available in both the hanging feeders.

made of special materials in our chain, curling, lengthening, there is absolutely no space. It has a tensile strength of up to 12 kN. 2 as the kind you are sunulmış müşterilerimizint erhic. Corner and in harmony with the engine running gears. High-speed resistant.

Remove the engine should be feeding systems, pulleys and steel ropes with scissors, working under the bridge channel hair is linked to the corners and tanks. The motor is geared brake and double-5d / d or reduce the speed of the transmission system convenient and slow to rope diameter 50 mm pipe with winding Amara. Reel sloping keep the balance between fixed and 4 beds wheels structures kestamit special ingredients to get the deflection. Up and down motion is set in kotnrol board.

The top grille channel is designed to provide an equal amount of animal feed and eat regularly. foot and lift the system does not vary. Wire system found on shock. Impact-resistant and does not stretch. According to the type of live grid spacing in the set are made in different sizes.

Channel Madiran mechanism which drives the feeding system. Motor group is connected to the gear system. Motor and move the gear chain connecting the shaft. as well as in accordance with the feed store must remove the system state and system manufacturing is done standing. My purpose in doing this way Instructional; Since it is thought to switch the system on legs or the feet of kaldırmalı kaldırmalı of not encountering any problems.

• The lift-automatic channel manger Single Cycle engine system used.
• Double Leg Cycle engine used in the automatic feed system channels.

silo product is the first entry in his unit to the feeding line. Oath after this point, the work is done from a special material even distribution chain takes place. deps feed bütüklüg capacity varies according to the farm. According to need more than one output option is available. Also standing in the feed store manger footed automatic channel system is manufactured in the lift-automatic feeding system and a leg strap. The same feed tank can be used in both systems. Capacity is between 240-600 kg.

Auto-footed channel used in feeding system, height adjustable, galvanized pipe üreitl of hair from the hair (bridge) is 2mm thick. As foot system is compatible with the one to one, the lift channel feed system is used by attaching linkage.

galvanized iron plate made with our body Gollum, Most tahdat portions of the pressing need of the animal. To prevent foot on board the night animals entering the nest, yukr is moving towards. In this way the animal can not do inside the entrance. So as to prevent the animal eğimlidr the top of the roost. Each gfolluk eye kapasiledir of 3-4 animals. In base (chip), on which the nest will prevent heat loss. Nest, is set in a secluded and dimly lit portion should be placed as possible.

The brand is switching Siemes materials used in ALFA's electrical panel. The outer casing of the Board, is detachable and can be re-mounting feature powder coated, allowing movement of the lift chain automatic feeder system akanl engine; Stipe channel start-pole single speed button for the feed system into action. In line engine lifting, running up and down the line. Control buttons allow movement up and down the line. The controls also masef up and down through safety switches is done automatically.
